Auto Equipment
Jet Solder Printer(JP-J2000)
| Jet Printer basic specification (JP-J2000) |
| Jet printing frequency |
720,000 dph / 1,080,000 dph (option) |
| Reference board throughput** |
33,000 cph / 40,500 cph* |
| Dot volume |
5 to 20 nL |
| Dot diameter |
0.33 to 0.52 mm |
| Media |
solder paste |
| surface mount adhesive |
| Board size |
50×50 mm (min) |
| 508×508 mm (max) |
| System options |
1.high-speed |
| 2.surface mount adhesive |
| 3.inspect and repair |
| 4.shared databases |
Hybrid placer_Lab (HJ-A1000)
| Hybrid placer_Lab (HJ-A1000) |
| Model |
HJ-A1000 |
| Size(W X D X H) |
1000x1000x1500mm |
| Power Supply |
Three-phases AC220V / 20A |
| Air Pressure |
0.7Mpa |
| Jetting Media |
Solder paste surface mount adhesive |
| Attach Device |
Die, Clip, SMT Device |
| Device Loading |
Waffle tray, SMT Feeder |
| Chip Size |
0402, 0603,,1005...2012, etc |
| Under Heater Max Temp |
600˚C |
| N2 Blower Max Temp |
800˚C |

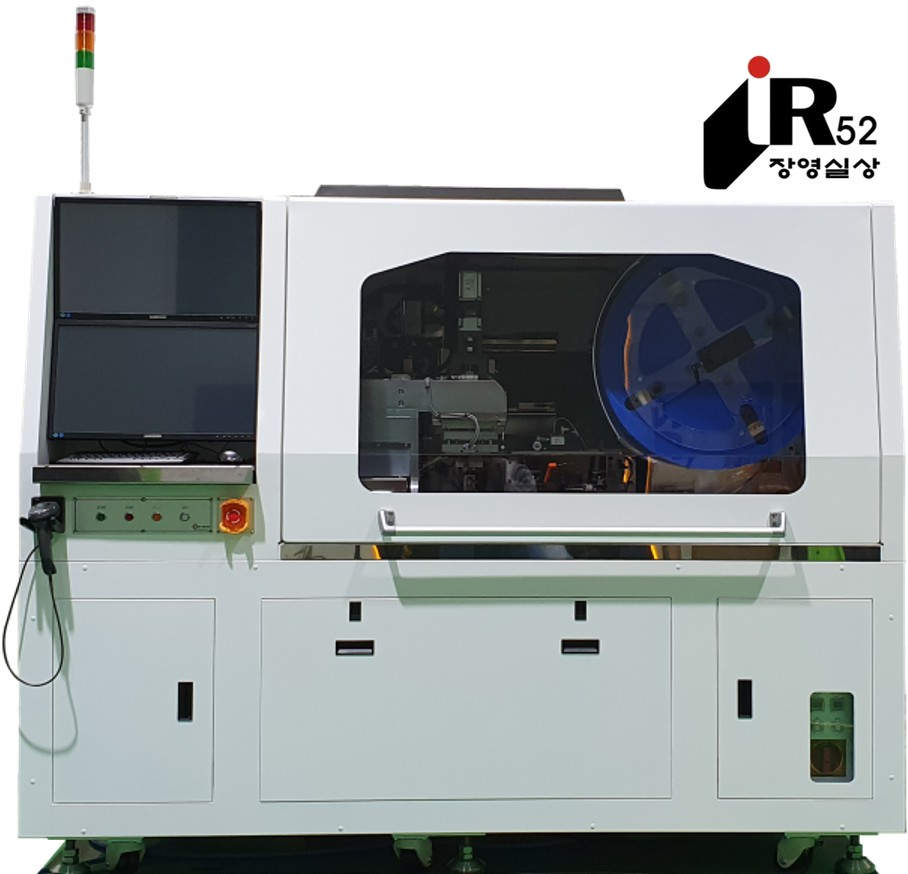

Multi Clip Mounter
| MCM(Multi Clip Mounter) |
| Model |
MCM-C2000s |
| Size(W X D X H) |
2100x1555x1870mm |
| Power Supply |
Three-phases AC220V / 30A |
| Air Pressure |
0.5Mpa |
| Bonding Accuracy |
±50um |
| UPH |
30~45K (unit) |
| Clip Cutting Tool |
Option |
| MES Communication |
Option |
Auto Trim / Form
| Auto Trim / Form |
| Model |
JTF-M1000 |
| Size(W X D X H) |
3100x1600x1800mm |
| Power Supply |
Three-phases AC380V / 30A |
| Air Pressure |
3 bar (minimum) |
| Double Press Type |
DDD & Trim form |
| Cycle Time |
5sec |
| UPH |
Case by Case |
| Orientation Vision |
Input Prevent mistake |
| User can choice unloading |
Magazine to Magazine |
| Magazine to Tray |
| Tray type |
Autoload Tray System |
| MES Communication |
Option |
Steam Ager
| Steam Ager |
| Model |
JKL-ST001 |
| Size(W X D X H) |
1145x405x627mm |
| Power Supply |
Single-phases AC220V / 30A |
| Water Input |
Auto Electric water Valve |
| Steam Zone Box |
6 box |
| Heater |
4KW x 1ea |
| Water Capacity |
15ℓ |
| Temp Control |
Digital Set Readout PID Control |
| Temp & Timer Setting |
7" Touch Monitor |
Water Deflesh
| Water Deflesh |
| Model |
JKW-WD001 |
| Size(W X D X H) |
2800x1350x1800mm |
| Power Supply |
Three-phases AC380V / 30A |
| Air Pressure |
3 bar (minimum) |
| Water Pump |
1 Ton (Max) |
| Water Working Pressure |
500 Kg |
| Loading & unloading |
Magazine to Magazine |
| Control Setting |
7" Touch Monitor |
Auto loader & Unloader
| Auto loader & Unloader |
| Model |
JKL-LD001 |
| Size(W X D X H) |
1300x480x1650mm |
| Power Supply |
Three-phases AC220V / 20A |
| Air Pressure |
3 bar (minimum) |
| Loading & unloading |
Magazine to Magazine |
| Control Setting |
7" Touch Monitor |
| Communication Type |
SMEMA Communication |
